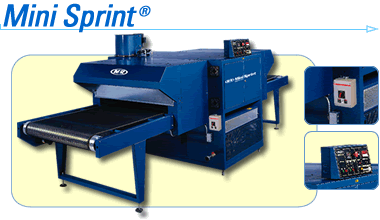

If you've longed for the efficiency and versatility of a gas dryer, but couldn't fit one into your shop or budget, M&R has the solution. Mini Sprint 2000 is the most compact and affordable gas dryer M&R has ever made. In fact, it may be the most compact and affordable gas dryer ever. Mini Sprint was designed to fit into tight places and tight budgets, making it perfect for those who always wanted the advantages of gas drying but thought it was out of reach. It's also ideal for large and medium-size shops that need a high-quality, high-performance gas dryer that will fit into a limited space. Despite its amazingly low price, it's loaded with standard features like System-Saver, that allows blowers and belt to run in cooldown mode after burner shutdown, then shut off automatically upon reaching the cooldown target temperature.

The substantial operational cost advantage gas offers in most regions is only part of the potential savings. Mini Sprint further reduces operating costs with its energy-efficient design. Its unique industrial insulation layer keeps more heat in the chamber, allowing Mini Sprint to produce abundant heat with less energy. Since more heat stays in the chamber, less radiates into the workplace. In fact, the superior design and insulation of Mini Sprint's heat containment system make it possible for Mini Sprint to achieve high performance levels with a burner rated at 200,000 BTU.

Mini Sprint is simple to operate and easy to maintain. Filters are easy to reach and clean, and lubrication points are conveniently located. It's designed and built with M&R's attention to quality, durability, and design excellence, and it’s backed by M&R's unsurpassed service and support. Affordably priced, economical to operate, and designed to handle both manual and automatic presses, Mini Sprint is the perfect dryer for any size shop.

Air Handling
Airflow is enhanced to accelerate drying/curing
Exhaust blower: approximately 1200 SCFM
High-volume circulation blower recirculates up to 80% of heated air
Stainless steel filter slides out for easy cleaning
Three separate dedicated blowers (combustion, circulation, & exhaust)
Certification
AGA?& CGA?approved (design certified by the American and Canadian Gas Associations to meet or exceed national safety standards for design and performance)
Gas controls meet standards set by Factory Mutual?and by the National Fire Protection Association?(NFPA)
Panel meets Underwriters Laboratories?(UL) standards and carries the UL label
Control Center
Air-cooled cabinet assures long life for electrical components
Control panel rotates for easy access and visibility
Fuzzy-Logic temperature controller program learns to modulate dryer process temperature more accurately as the dryer runs, ensuring the ultimate in curing consistency
Process temperature and set temperature are displayed and controlled digitally
Solid-state design
System-Saver allows blowers and belt to continue to run in cooldown mode after heat source shutdown, then shut off automatically upon reaching the cooldown target temperature
Temperature monitor issues visual and audible alarms for readings outside user-specified parameters
Conveyor Belt Width
38" (97 cm)
Conveyor System
Conveyor belt is made of heat-resistant, Teflon?coated fiberglass
Driven by a reliable, heavy-duty, variable-speed DC motor
Large diameter crowned aluminum conveyor rollers promote positive belt tracking
Solid-state belt speed controller with digital belt speed readout makes it easy to duplicate speed settings
Standard infeed/outfeed lengths: 4' (122 cm)
Design & Construction
Adjustable entry/exit openings
Assembled and tested at M&R's factory to assure turnkey operation
Bearings are designed for high speeds and high temperatures
Constructed of rigid steel and premium components
Designed for maximum thermal efficiency
Low-profile design
Modular design simplifies future expansion
Specialized joining fasteners simplify the connection of additional heat chamber units
Heat Chamber
Burners are available in a choice of liquid propane (LP) or natural gas (NG)
Direct-fired burner is maximum-rated at 200,000 BTU
Double-wall construction
Galvanized steel interior
Heavy-duty thermal insulation
Interior air distribution system assures uniformity and consistency of temperature
Modular gas train simplifies maintenance
Pressurized vector air knives provide uniform temperatures throughout the drying chamber
Service
24-hour hotline
Training
Access to M&R's Training Center
Warranty
Two-year limited

Certification
CE Compliant (Built to specifications established by the European Committee for Standardization?
Conveyor Belt Width
Custom sizes available: Quoted upon request
Conveyor System
Conveyor extension sections are available in 4' (122 cm) increments
High-speed conveyor drive system for versatility when used with graphics and industrial applications
Cooling Fan
Cools garments, making them easier to handle as they exit the heat chamber
Mounts over outfeed
Electrical Configurations
Available in three-phase
Other electrical configurations are available
Heat Chamber
Additional 2?(61 cm) sections available
Infrared Radiant Heat Section
Independent 2?(61 cm) module preheats inks for faster throughput

*If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Measured at the Exhaust Discharge Port
*** Nominal usage varies, but is considerably lower than the stated maximum
**** Weight applies to models with an 8' (2.44 m) heat/expansion chamber
