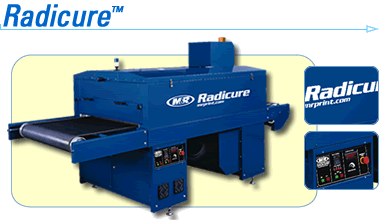

래디큐어(Radicure)는 Nuarc의 초고성능 UV(자외선) 건조기(경화기)입니다.

대량생산용으로 고내구성과 최대의 생산성을 보유하고 있습니다.
Alternative 방식의 고성능 UV건조기로서 히팅소스의 중심부는 가장 진보된 열역학 개념으로 설계되어 있어
최고의 성능을 보여 줍니다.
- 설정된 온도에 최단시간에 도착해 최적온도를 안정적으로 유지 할수 있는 메카니즘 채택.
-복사판넬을 위아래로 간단히 위치 조정 가능

래디큐어의 진보된 에어플로우 시스템은 drying(건조)/curing(경화) 공정을 가속화 시켜
균일하고 일관된 curing(큐어링)이 가능하게끔 해 줍니다.

래디큐어는 배기용과 순환용으로 2개의 분리된 블로워(송풍) 시스템이 갖춰져 있고 전면 판넬에서
간단하게 조작할수 있게끔 되어 있습니다.

외관은 Nuarc특허의 단열처리시스템으로 내부 히트챔버의 열기가 밖으로 전달 안되도록 설계되어 있어
장비외관이 가열되는걸 원천적으로 봉쇄해 줍니다.

래디큐어의 System-Saver 는 복사열 패널이 정지한 후에도 블로워와 콘베어벨트를 냉각 모드에서 계속 동작시켜 냉각 목표 온도에 도달한 후에 시스템 전체를 정지시킵니다

Like all M&R equipment, Radicure is built with M&R's unsurpassed commitment to quality, durability, and design excellence, and is backed by the best service and support in the industry.



Air Handling
Adjustable air displacement and evacuation systems
Airflow is radically enhanced to accelerate drying/curing
Stainless steel filter slides out for easy cleaning
Certification
Panel meets Underwriters Laboratories?(UL) standards and carries the UL label
Control Center
Air-cooled cabinet assures long life for electrical components
Fuzzy-Logic temperature controller program learns to modulate dryer process temperature more accurately as the dryer runs, ensuring the ultimate in curing consistency
Process temperature and set temperature are displayed and controlled digitally
Solid-state design
System-Saver allows blowers and belt to continue to run in cooldown mode after heat source shutdown, then shut off automatically upon reaching the cooldown target temperature
Temperature status tower light뾴isible to operators around the entire dryer perimeter뾦ndicates temperatures are within user-set tolerances
Conveyor Belt Width
36" (91 cm), 48" (122 cm), and 60" (152 cm)
Conveyor System
Conveyor belt is made of heat-resistant, Teflon?coated fiberglass
Driven by a reliable, heavy-duty, variable-speed DC motor
Large diameter crowned aluminum conveyor rollers promote positive belt tracking
Solid-state belt speed controller with digital belt speed readout makes it easy to duplicate speed settings
Design & Construction
Adjustable entry/exit openings
Assembled and tested at M&R's factory to assure turnkey operation
Constructed of rigid steel and premium components
Designed for maximum thermal efficiency
Low-profile design
Heat Chamber
Curing provided by infrared radiant panel array and forced air heat
Double-wall construction
Single-point radiant panel height adjustment
Suspended insulating system dramatically improves heat retention for optimal operating temperatures and maximum cure rates (U.S. Patent No. 6,161,304)
Service
24-hour hotline
Training
Access to M&R's Training Center
Warranty
Two-year limited



Certification
CE Compliant (Built to specifications established by the European Committee for Standardization?
Conveyor Belt Width
Custom sizes available: Quoted upon request
Conveyor System
Conveyor extension sections are available in 1' (30 cm) increments
High-speed conveyor drive system for versatility when used with specialized graphics and industrial applications
Cooling Fan
Cools garments, making them easier to handle as they exit the heat chamber
Mounts over outfeed
Electrical Configurations
Other electrical configurations are available
Graphics Model
Specially designed for graphic products printed with inks that can be cured by infrared heat



Model Belt
Width		 Heat
Chamber
Length		 Radiant
Panels		 Standard
Infeed
Length		 Standard
Outfeed
Length		 Overall
Length
Radicure 36/6 36"(91 cm) 6'
(183 cm)		 3 2' 6"
(76 cm)		 1' 6"(46 cm) 10'
(305 cm)
Radicure 36/6 36"(91 cm) 6'
(183 cm)		 4 2' 6"
(76 cm)		 1' 6"(46 cm) 10'
(305 cm)
Radicure 36/10 36"(91 cm) 10'
(305 cm)		 6 5'
(152 cm)		 5'
(152 cm)		 20'
(610 cm)
Radicure 48/10 48"(122 cm) 10'
(305 cm)		 6 5'
(152 cm)		 5'
(152 cm)		 20'
(610 cm)
Radicure 60/10 60"(152 cm) 10'
(305 cm)		 6 5'
(152 cm)		 5'
(152 cm)		 20'
(610 cm)

Electrical Requirements* Exhaust Blower System Shipping Weight
208/230v, 1 phase, 62/68 amps, 60Hz
208/230v, 3 phase, 38/41 amps, 60Hz
380/415v, 3 phase, 20/22 amps, 60Hz		 4" (10 cm) Dia. 300 scfm @ 1/8" (3 mm) s.p. 1800 lbs
(817 kg)
208/230v, 1 phase, 80/87 amps, 60Hz
208/230v, 3 phase, 48/52 amps, 60Hz
380/415v, 3 phase, 27/29 amps, 60Hz		 4" (10 cm) Dia. 300 scfm @ 1/8" (3 mm) s.p. 1800 lbs
(817 kg)
208/230v, 3 phase, 70/77 amps, 60Hz
380/415v, 3 phase, 39/43 amps, 60Hz		 12" (30 cm) Dia. 1200 scfm @ 1/4" (6 mm) s.p. 2450 lbs
(1112 kg)
208/230v, 3 phase, 91/100 amps, 60Hz
380/415v, 3 phase, 50/55 amps, 60Hz		 12" (30 cm) Dia. 1200 scfm @ 1/4" (6 mm) s.p. 2850 lbs
(1293 kg)
208/230v, 3 phase, 112/122 amps, 60Hz
380/415v, 3 phase, 61/67 amps, 60Hz		 12" (30 cm) Dia. 1200 scfm @ 1/4" (6 mm) s.p. 3300 lbs
(1497 kg)


*If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Measured at the Exhaust Discharge Port



Eagle Products Inc.
Kansas City, Missouri

"We just love our new Radicure dryer! It뭩 even better than we expected. We put a new amprobe on it, and we couldn뭪 believe our eyes. Although it뭩 rated at 103 amps, it only pulls 10 to 30 amps once it is warmed up. It maintains its exact temperature setting, and it뭩 really fast and easy to use. Thanks M&R!"
