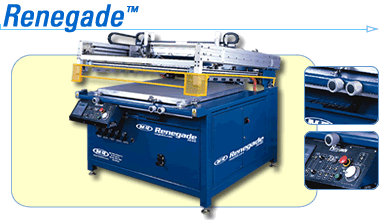

Renegade는 레니게이드 시리즈중 가장 콤팩트한 장비입니다.
Renegade는 Nuarc의 혁신적인 평상형 그래픽 인쇄기(flat bed graphic press) 씨리즈중의 하나로서
커팅엣지용 마이크로프로세서 기술, 작업자를 위한 세련된 콘트롤기능, 디지털 키패드, 쉬운 프로그래밍,
생산속도 모니터링, 자가진단 기능 및 프로그램 저장 기능을 제공합니다.
딜레이, Peel Ratio,작업시간,등 여러항목의 설정및 저장이 가능해 블로우백및 베큠의 시작시간 및
진행시간도 설정 가능합니다.
이런설정은 추후 유사한 작업 필요시 설정내용을 재로딩하면 원하는작업의 반복작업이 가능하게 해줍니다.
Renegade는 작업자가 스퀴지나 플러드바의 압력 실린더를 보다 가깝게 하거나 멀리떨어뜨리는 조작을
통해서 이상적인 스퀴지압력이 되게끔조절할수 있으며 이를 통해 아주선명하고 명확한 프린트를
가능하게 해 주며
무한한 필 조정(peel adjustment)기능 그리고 다이얼로 0.0025cm단위로 진공 베드 레지스트레이션 조작을
가능하도록 합니다.

Renegade 는 66 x 97 cm 부터102 x 142 cm 까지 인쇄가 가능합니다.




Certification
Panel listed by Underwriter's Laboratories?(UL)
Control Center
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Job recall allows storage and recall of settings for delay, peel ratio, dwell time, and start and duration times for blowback and vacuum
Production speed monitor for more accurate job costing
Programming & prompts in plain language
Squeegee speed, flood speed, and dwell times are independently controlled from control panel
Two-stage foot pedal allows hands-free single cycle printing, and controls press operation and vacuum independently
Design and Construction
Extruded aluminum print heads and master frame for strength and durability
Hardened steel tracks for years of smooth, vibration-free printing
Rugged all-steel chassis
Ink Dip System
Patented retrieval system keeps ink in print area (Patent # 5,649,479)
Peel
Automatically synchronized gear-driven peel
Flat flood Feature
Infinitely adjustable
Print Carriage
Adjustable (tool-free) front and rear sensors located on the print heads
Dynamic braking to keep print carriage out of printing area
Heavy-duty chatter-free design
Independent drives for print carriage and head lift
Maintenance-free brushless AC motors adjust speed by frequency variation with constant torque
Print Sizes Available
26?x 38?(66 x 97 cm), 30?x 40?(76 x 102), 38?x 50?(97 x 127 cm), and 40?x 56?(102 x 142)
Safety
Wrap-around safety bar on either side of the head
Safety system triggers dynamic braking, reverses print head, and stops all movement when activated
Screen Holders
Adjustable screen holders accommodate a wide variety of screen sizes
Master frame detaches from raised head for easy screen access
Tool-free, four corner off-contact settings allow quick and accurate screen placement at all four corners
Zero off-contact capability offers greater control over print quality
Squeegees/Floodbars
Adjustable pneumatic squeegee pressure equalizer maintains uniform pressure across length of squeegee
Flood/non-flood setting leaves screen flooded or non-flooded after print cycle
Independent print/flood speed controls
Park position allows flood and squeegee to be raised and moved to front or rear without flooding or printing, and allows easy squeegee and floodbar installation and removal
Repositionable squeegee and floodbar pressure cylinders
Tool-free squeegee/floodbar pressure and angle adjustments are independently calibrated for superior print quality
Vacuum System
Blowback and vacuum pressure control easily adjusts to different stock types and thickness
Dial indicators for vacuum bed adjustment in .001?(.0025 cm) increments
CNC-drilled 2?(5.08 cm) high heavy-gauge anodized aluminum vacuum bed, engineered to stay flat
High volume vacuum turbine system with blowback
Up-front access for easy setup and adjustment
Service
24-hour hotline
Training
Access to M&R뭩 Training Center
Warranty
One-year limited

Certification
CE Compliant: Built to specifications established by the European Committee for Standardization?(CE)
Control Center
Management Production Software
Modem with cable and module
Multi-print Capability
Electrical
Other voltages available
Peel
Stepper motor on peel with single-point fingertip control
Registration System
Registration Pins (round or square pins available)
Screen Clamps
Pneumatic screen clamps securely lock frame in place
Sentry Takeoff
Fully adjustable gripper-style adapts to virtually any substrate
Squeegees/Floodbars
Dripless squeegee attachment automatically moves squeegee over floodbar before flood stroke
Pneumatic squeegee/floodbar air locks
Skewed squeegee holder


Model Maximum Image Maximum OD Frame Size Vacuum Bed OD Size Total Floor Area
Renegade 2638 26?x 38?br> (66 x 97 cm) 52?x 49?x 2.25?br> (132 x 124 x 5.7 cm) 46?x 46?br> (1.17 x 1.17 m) 63?x 68?br> (1.6 x 1.73 m)
Renegade 3040 30?x 40?br> (76 x 102 cm) 52?x 49?x 2.25?br> (132 x 124 x 5.7 cm) 46?x 46?br> (1.17 x 1.17 m) 63?x 68?br> (1.6 x 1.73 m)
Renegade 3850 38?x 50?br> (97 x 127 cm) 68?x 59?x 2.25?br> (173 x 150 x 5.7 cm) 56?x 62?br> (1.42 x 1.57 m) 79.5?x 77?br> (2.02 x 1.96 m)
Renegade 4056 40?x 56?br> (102 x 142 cm) 68?x 59?x 2.25?br> (173 x 150 x 5.7 cm) 56?x 62?br> (1.42 x 1.57 m) 79.5?x 77?br> (2.02 x 1.96 m)

Model Air @ 100 PSI Electrical Requirements* Sentry Takeoff Floor Area Takeoff Electrical Requirements* Weight
Renegade 2638 6 scfm 208/230v, 3 phase,11/12 amps, 60 Hz 96?x 43?br> (2.44 x 1.09) 208/230v, 3 phase,2.5 amps, 60 Hz 1800 lbs
(816 kg)
Renegade 3040 6 scfm 208/230v, 3 phase,11/12 amps, 60 Hz 96?x 43?br> (2.44 x 1.09) 208/230v, 3 phase,2.5 amps, 60 Hz 2000 lbs
(907 kg)
Renegade 3850 6 scfm 208/230v, 3 phase,12/13 amps, 60 Hz 114?x 63?br> (2.9 x 1.6 m) 208/230v, 3 phase,3 amps, 60 Hz 2400 lbs
(1089 kg)
Renegade 4056 6 scfm 208/230v, 3 phase,12/13 amps, 60 Hz 114?x 63?br> (2.9 x 1.6 m) 208/230v, 3 phase,3 amps, 60 Hz 2700 lbs
(1225 kg)

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
