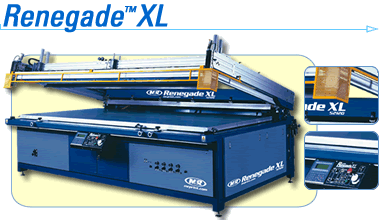

Renegade XL은 레니게이드의 확장형 버전으로서 가장 혁신적인
평상형 그래픽 인쇄기(flat bed graphic press) 입니다.

커팅엣지용 마이크로프로세서 기술, 작업자를 위한 세련된 콘트롤기능, 디지털 키패드, 쉬운 프로그래밍, 생산속도 모니터링, 자가진단 기능 및 프로그램 저장 기능을 제공합니다.
딜레이, Peel Ratio,작업시간,등 여러항목의 설정및 저장이 가능해 블로우백및 베큠의 시작시간 및
진행시간도 설정 가능합니다.
이런설정은 추후 유사한 작업 필요시 설정내용을 재로딩하면 원하는작업의 반복작업이 가능하게 해줍니다.

Renegade XL는 독립적으로 작동하는 2개의 중앙실린더로 스퀴지와 플러드바의 중심에 부가적인 압력을
가할수 있어 이상적으로 스퀴지의 압력을 조정할수 있습니다.
이로인해 아주 선명하고 명확한 프린트가 가능하며
Renegade LS는 무한한 필 조정(peel adjustment)기능
그리고 다이얼로 0.0025cm단위로 진공 베드 레지스트레이션 조작을 가능하도록 합니다.

Renegade LS 는 포스터, 배너, 비닐, 플리트 마킹, 유리, 금속, 디스플레이 패널 등 대형 평면에 인쇄가
가능하며
Renegade LS는 1.17 X 1.73m부터 1.32 X 3.05 m까지 넓은 범위의 인쇄가 가능합니다.



Certification
Panel listed by Underwriter's Laboratories?(UL)
Control Center
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Job recall allows storage and recall of settings for delay, peel ratio, dwell time, and start and duration times for blowback and vacuum
Production speed monitor for more accurate job costing
Programming & prompts in plain language
Squeegee speed, flood speed, and dwell times are independently controlled from control panel
Two independent foot pedals: one for hands-free single cycle printing, one for vacuum control
Design and Construction
Extruded aluminum print heads and master frame for strength and durability
Hardened steel tracks for years of smooth, vibration-free printing
Rugged all-steel chassis
Ink Dip System
Patented retrieval system keeps ink in print area (Patent # 5,649,479)
Peel
Automatically synchronized gear-driven peel
Flat flood feature
Infinitely adjustable within range
Print Carriage
Adjustable (tool-free) front and rear sensors located the print heads
Dynamic braking to keep print carriage out of printing area
Heavy-duty chatter-free design
Independent drives for print carriage and head lift
Maintenance-free brushless AC motors adjust speed by frequency variation with constant torque
Print Sizes Available
46?X 68?(117 X 173 cm), 52?X 84?(132 X 213 cm), 52?X 96?(132 X 244 cm) and 52?X 120?(132 X 305 cm)
Safety
Infrared light beams and wrap-around safety bar on either side of the head
Safety system triggers dynamic braking, reverses print head, and stops all movement when activated activated
Screen Holders
Adjustable screen holders accommodate a wide variety of screen sizes
Master frame detaches from raised head for easy screen access
Tool-free, four corner off-contact settings allow quick and accurate screen placement at all four corners
Zero off-contact capability offers greater control over print quality
Squeegees/Floodbars
Adjustable pneumatic squeegee pressure equalizer maintains uniform pressure across length of squeegee
Center squeegee and floodbar cylinder with independent regulator for optimal print quality
Flood/non-flood setting leaves screen flooded or non-flooded after print cycle
Independent print/flood speed controls
Park position allows flood and squeegee to be raised and moved to front or rear without flooding or printing, and allows easy squeegee and floodbar installation and removal
Tool-free angle adjustment
Vacuum System
Blowback and vacuum pressure control easily adjusts to different stock types and thickness
Dial indicators for vacuum bed adjustment in .001?(.0025 cm) increments
CNC-drilled 2?(5.08 cm) high heavy-gauge anodized aluminum vacuum bed, engineered to stay flat
High volume vacuum turbine system with blowback
Up-front access for easy setup and adjustment
Service
24-hour hotline
Training
Access to M&R뭩 Training Center
Warranty
One-year limited

Certification
CE Compliant: Built to specifications established by the European Committee for Standardization?(CE)
Control Center
Management Production Software
Modem with cable and module
Multi-print Capability
Electrical
Other voltages available
Peel
Stepper motor on peel with single-point fingertip control
Registration System
Registration Pins (round or square pins available)
Screen Clamps
Pneumatic screen clamps securely lock frame in place
Sentry?Takeoff
Fully adjustable gripper-style
Squeegees/Floodbars
Dripless squeegee attachment automatically moves squeegee over floodbar before flood stroke
Pneumatic squeegee/floodbar air locks
Skewed squeegee holder

Model Maximum Image Maximum OD Frame Size Vacuum Bed OD Size Total Floor Area
Renegade XL 4668 46?x 68?br> (117 x 173 cm) 68?x 88?x 2.5?br> (173 x 224 x 6.4 cm) 62?x 84?br> (157 x 213 cm) 93?x 90?br> (2.36 x 2.29 m)
Renegade XL 5284 52?x 84?br> (132 x 213 cm) 74?x 106?x 2.5?br> (188 x 269 x 6.4 cm) 67?x 100?br> (170 x 254 cm) 109?x 95?br> (2.77 x 2.41 m)
Renegade XL 5296 52?x 96?br> (132 x 244 cm) 74?x 118?x 2.5?br> (188 x 300 x 6.4 cm) 67?x 112?br> (170 x 284 cm) 121?x 95?br> (3.07 x 2.41 m)
Renegade XL 52120 52?x 120?br> (132 x 305 cm) 74?x 142?x 2.5?br> (188 x 361 x 6.4 cm) 67?x 136?br> (170 x 345cm) 145?x 95?br> (3.68 x 2.41 m)

Model Air @ 100 PSI Electrical Requirements* Sentry Takeoff Floor Area Takeoff Electrical Requirements* Weight
Renegade XL 4668 8 scfm 208/230v, 3 phase 20 amps, 50/60 Hz 140?x 65?br> (3.56 x 1.65 m) 208/230v, 3 phase 4 amps, 50/60 Hz 3200 lbs
(1452 kg)
Renegade XL 5284 8 scfm 208/230v, 3 phase 20 amps, 50/60 Hz 158?x 65?br> (4.01 x 1.65 m) 208/230v, 3 phase 4 amps, 50/60 Hz 3500 lbs
(1588 kg)
Renegade XL 5296 8 scfm 208/230v, 3 phase 20 amps, 50/60 Hz 170?x 65?br> (4.32 x 1.65 m) 208/230v, 3 phase 4 amps, 50/60 Hz 3700 lbs
(1678 kg)
Renegade XL 52120 8 scfm 208/230v, 3 phase 30 amps, 50/60 Hz 190?x 65?br> (4.83 x 1.65 m) 208/230v, 3 phase 4 amps, 50/60 Hz 4000 lbs
(1814 kg)

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly

Spot Graphics, Inc.
Winnepeg, Manito
"We upgraded and enhanced our shop by purchasing the M&R line of presses and support equipment, and M&R equipment has become the backbone of our operation. Our 4 Renegade XL and 2 Saturn presses give us a print range from 25/38 to 52/120. They are easy to operate and low maintenance, and they have greatly increased the consistency of print we are able to produce. M&R has proven to be the most cost-effective solution for us."
